Zoho CRM Widget API Integration with Nexphone

What if your team could fetch external network data, validate it, and push it into Zoho CRM – all without leaving the CRM interface?

This case study demonstrates how a custom Zoho CRM Embedded Widget integrated with Nexphone API eliminates manual lookup, reduces errors, and streamlines CRM data creation in a single workflow.

What is a Zoho CRM Widget?

A Zoho CRM Widget (Embedded App) is a custom UI component that runs inside Zoho CRM using the Zoho Embedded App SDK.

Where Widgets Are Used:

• Record Detail Pages
• Custom Buttons / Tabs
• Related Lists
• Web Tabs inside CRM UI

Benefits:

• Extend CRM functionality without external tools
• Integrate third-party APIs seamlessly
• Provide real-time data inside CRM
• Improve user productivity with custom workflows

Problem Statement:

Businesses using external systems like Nexphone often face:

• Manual data lookup from external portals
• Time-consuming copy-paste into CRM
• High risk of human error
• No centralized workflow
• Poor data consistency

Solution Overview:

We developed a custom Zoho CRM Widget that:

• Connects to Nexphone API
• Performs real-time search
• Displays results instantly
• Allows multi-select record selection
• Creates CRM records in bulk

All within Zoho CRM – no tab switching required.

Features Breakdown

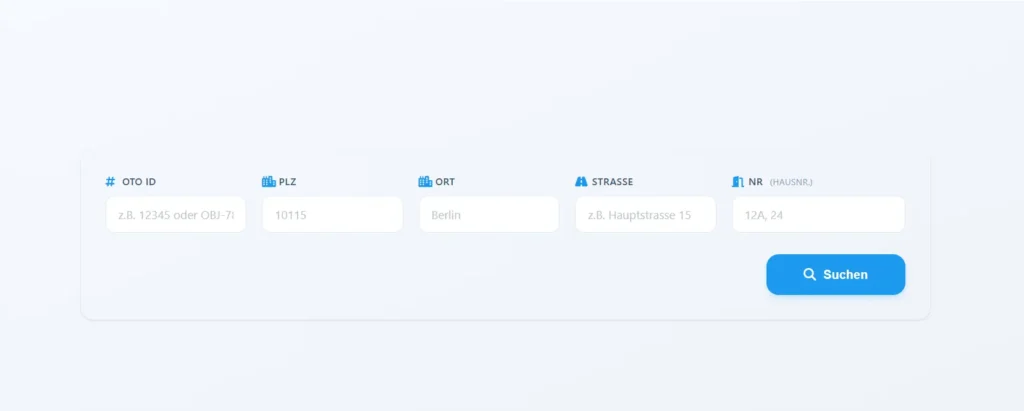

Smart Multi-Field Search:

Search using:

• Socket Name
• Postal Code
• City
• Street
• Street Number

Real-Time API Integration:

• Secure API calls using Basic Authentication
• Instant data retrieval from Nexphone

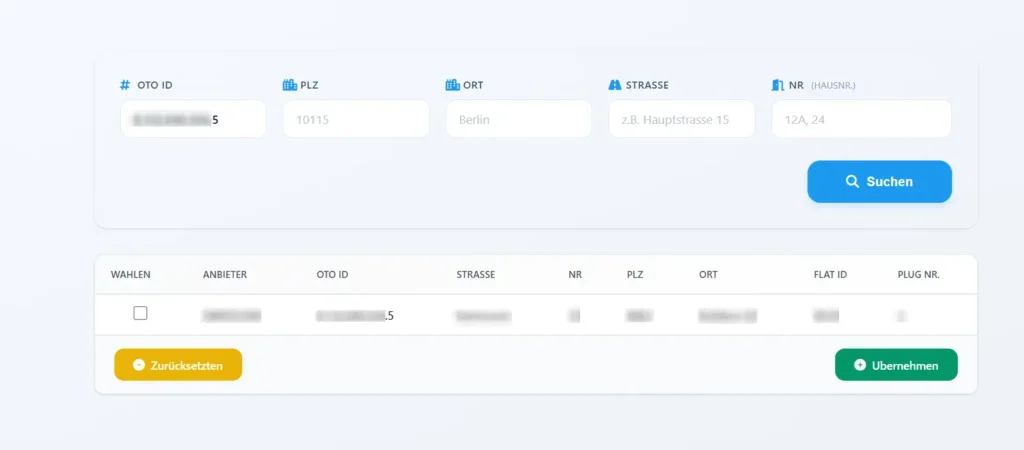

Dynamic Table UI:

• Responsive design (Tailwind CSS)
• Structured data rendering
• Clean and modern interface

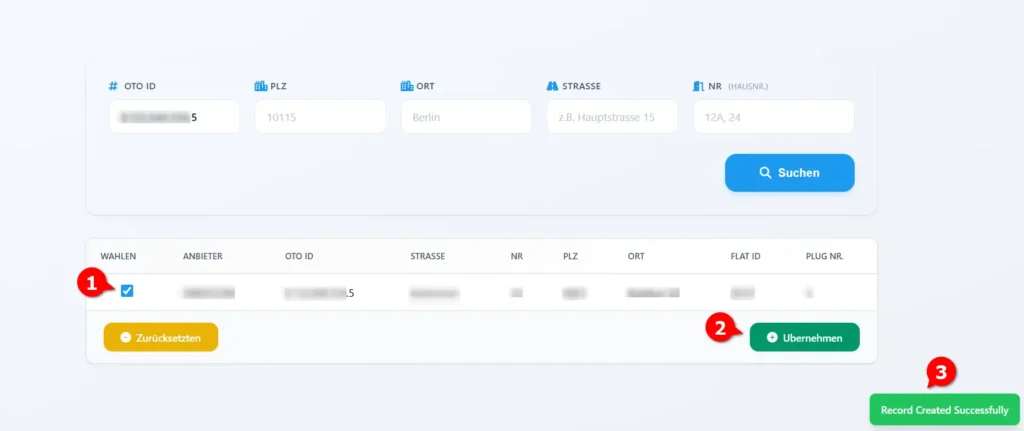

Bulk Record Creation:

• Multi-select checkboxes
• Create multiple records in one click

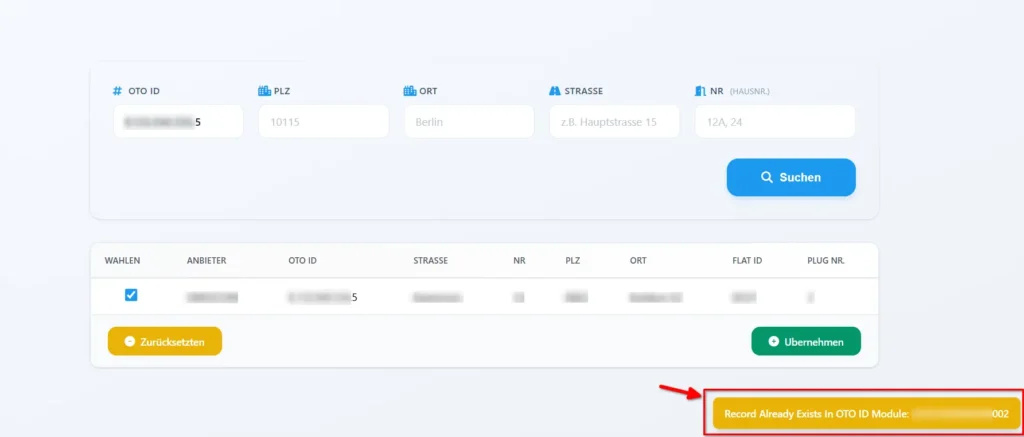

Duplicate Detection:

• Prevents duplicate record entries
• Displays warning notifications

Toast Notification System:

• Success alerts
• Error handling
• Duplicate warnings

Reset & Reload:

• Clear search form instantly
• Reload results dynamically

Technical Implementation

1. Initialize Zoho Embedded SDK

ZOHO.embeddedApp.on("PageLoad", function (data) {
    console.log("Widget Loaded", data);
});ZOHO.embeddedApp.init();

2. Form Handling (JavaScript)

document.getElementById("searchForm").addEventListener("submit", function(e) {
    e.preventDefault();
    searchRecords();
});

3. API Request via Zoho CRM HTTP

ZOHO.CRM.HTTP.post({
  url:"https://portal.nexphone.ch/api/psuite/reseller/sales/network/access/qualification",
    headers: {
        "Authorization": "Basic XXXXX"
    },
    body: JSON.stringify(payload)
}).then(function(response) {
    renderTable(response.details);
});

4. Modular JavaScript Architecture

/js
 ├── searchRecord.js
 ├── domManipulation.js
 ├── createRecord.js
 ├── utils.js

Benefits:

• Clean code separation
• Easy maintenance
• Scalable architecture

5. Dynamic Table Rendering

function renderTable(data) {
    const tableBody = document.getElementById("tableBody");
    tableBody.innerHTML = "";    data.forEach(item => {
        tableBody.innerHTML += `
            <tr>
                <td><input type="checkbox" value="${item.{value}}" /></td>
                <td>${item.city}</td>
                <td>${item.street}</td>
            </tr>
        `;
    });
}

6. Create Records in Zoho CRM

ZOHO.CRM.API.insertRecord({
    Entity: "{custom_module}",
    APIData: {
        Name: selectedData.name,
        OTO_ID: selectedData.{value}
    }
}).then(function(response) {
    showToast("Record Created Successfully");
});

Workflow (Step-by-Step)

1. User opens widget inside Zoho CRM
2. Enters search criteria
3. Widget sends API request to Nexphone
4. Results displayed in dynamic table
5. User selects desired records
6. Clicks Create Record
7. Data saved in Zoho CRM Custom Module

Output / Result

• Clean, structured data table
• Selected records stored in CRM
• Instant feedback via notifications

Time-Saving Benefits

• Eliminates manual data entry
• Reduces lookup time drastically
• Minimizes human errors
• Improves team efficiency

User Experience

• Fast and responsive UI
• Minimal clicks required
• Clear feedback system
• Seamless CRM integration

Business Benefits

• Centralized data management
• Improved data accuracy
• Automated external integration
• Scalable architecture for future APIs

Use Cases

• Telecom & Fiber Providers
• Real Estate Data Lookup
• Address Validation Systems
• CRM Data Enrichment

Conclusion

This solution highlights the true power of Zoho CRM Widgets + API Integration:

• Automate repetitive workflows
• Integrate external systems seamlessly
• Enhance CRM usability
• Scale business operations efficiently

A well-designed widget can transform Zoho CRM into a centralized automation hub.
